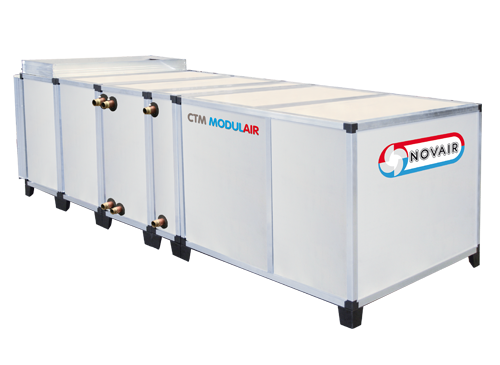

CTM MODUAIR are designed for industrial and civil building, having a wide range of modular section to maximize the flexibility of air handling units.

Features

• Ranges in 5 models with 17 sectional units
• Air flow volume from 4500m3/h to 28000m3/h
• Different plenum selections
• Wide ranges of filter section
• Selection of silencer
• Choice of heating coiling and electrical heater
• Cross-flow heat recovery section

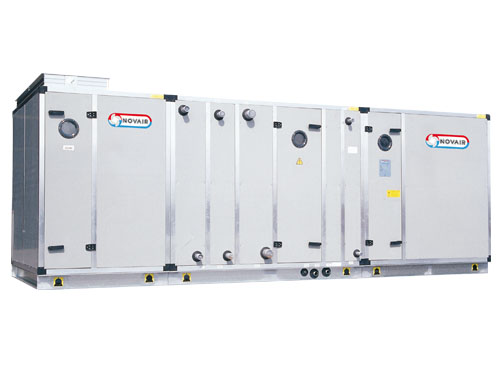

NOVAIR CTA series are standard Air Handling Units having different dimensions to match with specific needs and air volumes.

Features

• Multi –selection with 21 modular models
• Air volume from 1000m3/h to 95,000m3/h
• Pre-filter and Main –filter section
• Selection of heating coil (1 row- 4 row) or electric heaters
• Selection of cooling coil (4R- 12R) and droplet eliminator
• Selection of silencer
• Selection of humidifiers
• Selection of heat wheel recovery unit
• Mixing plenum with maximum 3nos of damper control
• Insulation with mineral wool density (80- 100kg/m2) (option)
• Double chamber plexiglass porthole in the different inspectionable sections (Options)
